L200 PRO MAX Drone 4K Professional 2-Axis Gimbal 360° Obstacle Avoidance Brushless Motor GPS Quadcopter FPV RC Drones

L200 Drone Using Tips：

Please make sure to calibrate the gimbal of L200 before each use, otherwise it is easy to damage the gimbal.

1. Before using L200, please fully unfold the arms.
2. Remove the gimbal cover and sponge pad.
3. Remove the lens protective film.
4. Remove the insulation sticker on the battery and install the battery back.
5. Press the power button at the bottom of the L200 for 3-5 s to turn it on.
6. After turning on the drone, place it on a level surface.
7. Press the remote control power button to turn it on.
8. L200 and remote will automatically pair.
After successful paired, the blue light of L200 stay on.
9. Wait for the L200 gimbal to perform self-calibration.
10. During calibration, the gimbal will move up and down, and tilt left and right.
11. When the gimbal returns to its original position, the calibration is complete and you can use it normally.

Description:

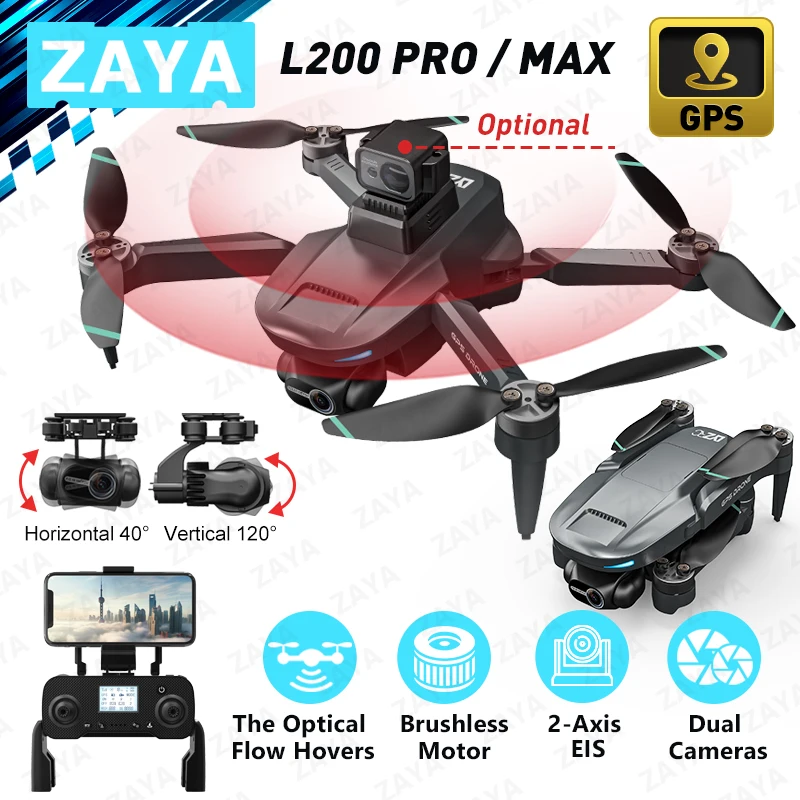

Two version options: L200 PRO / L200 PRO MAX
Their only difference is L200 PRO without 360° Laser obstacle avoidance, but L200 PRO MAX with 360° Laser obstacle avoidance. Other functions are the same.

Color: Silver Grey
Features:2-Axis Gimbal Stablizer
Channel: 4 Channels
Gyro: 6 Axis
Motor: 1503 Brushless Motor
Pressure sensor: Height setting
Electric power adjustment: 10A

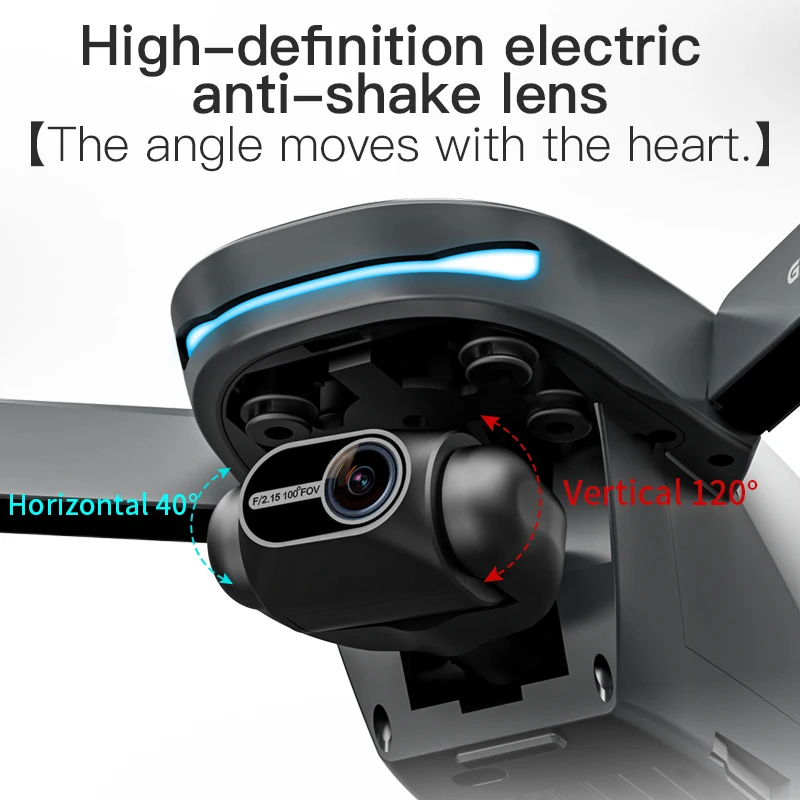

Electric Adjustment Camera Angle: 80°
Camera Wide Angle: 100°
Remote Control Frequency: 2.4GHz
(Optional) Laser obstacle avoidance: 360°
(Optional)Laser obstacle avoidance distance: 25M

Remote Control Distance: About 3000 Meters (No Interference, No Occlusion)

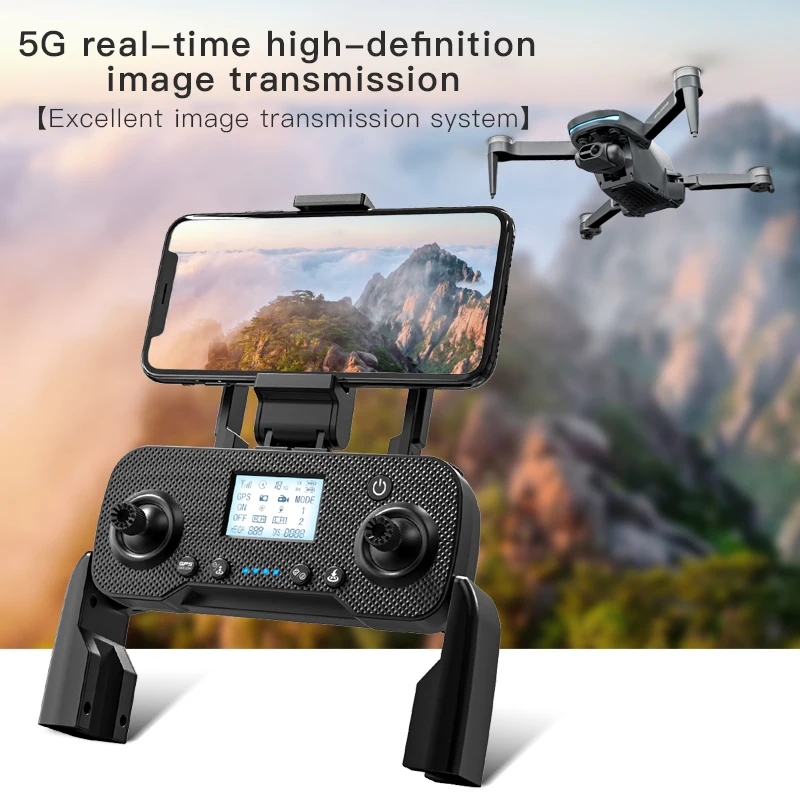

Image Transmission Distance: 1200 Meters (No Interference, No Occlusion)
Flight altitude:120M
Flight Time: 23-25 Minutes
Front Camera Photo Resolution: 3840*2160P
Front Camera Video Resolution: 2660*1440P(SD)
Bottom Camera Photo Resolution: 1280*720P
Bottom Camera Video Resolution: 1280*720P
Frame Rate: 30 fps
Photo Recording Mode: Remote Control + APP Control
Remote Control Battery: 3.7V/300mAh Lithium Battery (Included)
Quadcopter Size: 260*220*85MM (Unfoldable),130*75*85MM (Foldable）

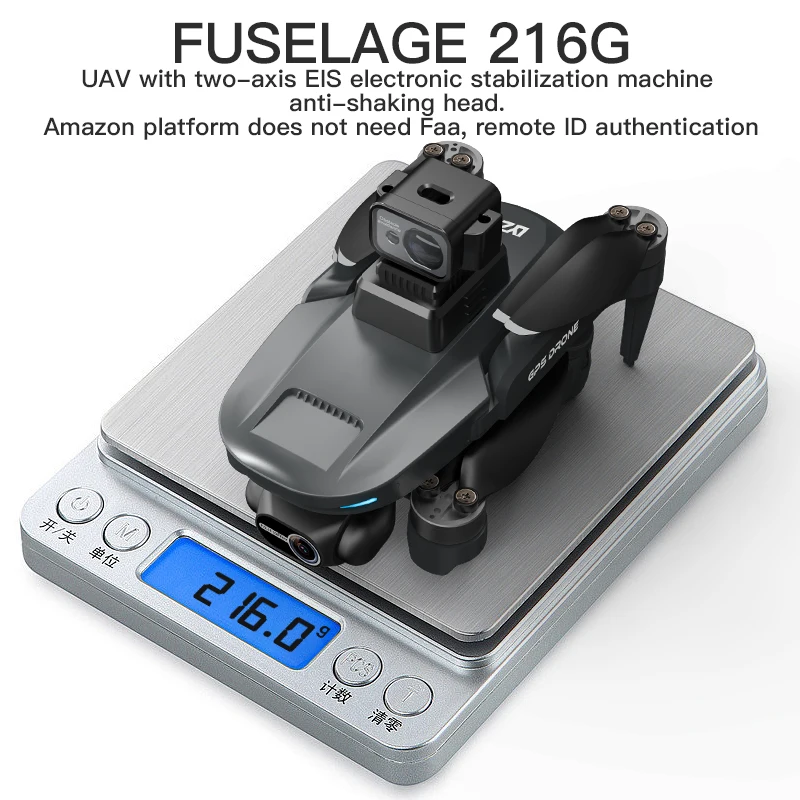

Quadcopter Weight: 216g
SD Card Support: Support 32-128G
(Optional) Obstacle avoidance detection range: 25M outdoors / 3M indoors (-60°-+60°)

Function introduction:

1. GPS returns to take-off point with one click, low battery return, no signal return

2. ①GPS intelligent following; ②Image following: identify the photographed object and automatically follow the flight

3. Gesture shooting recognition: Within 1-3m from the aircraft, make photo/video gestures facing the camera

4. Plan flight with multiple points on the route: the aircraft flies autonomously according to the preset route, and the player focuses on shooting

5. Fixed-point surround: Find the center point of the surround, and then use the joystick to move the desired surround radius

6. Aircraft retrieval function: Click the GPS signal icon three times in succession to open the map interface. The map displays the aircraft’s final distance, longitude and latitude position.

7. Pictures, music and video sharing can be added: single or multiple selections can be made to share photos, and videos can only be shared individually at a time.

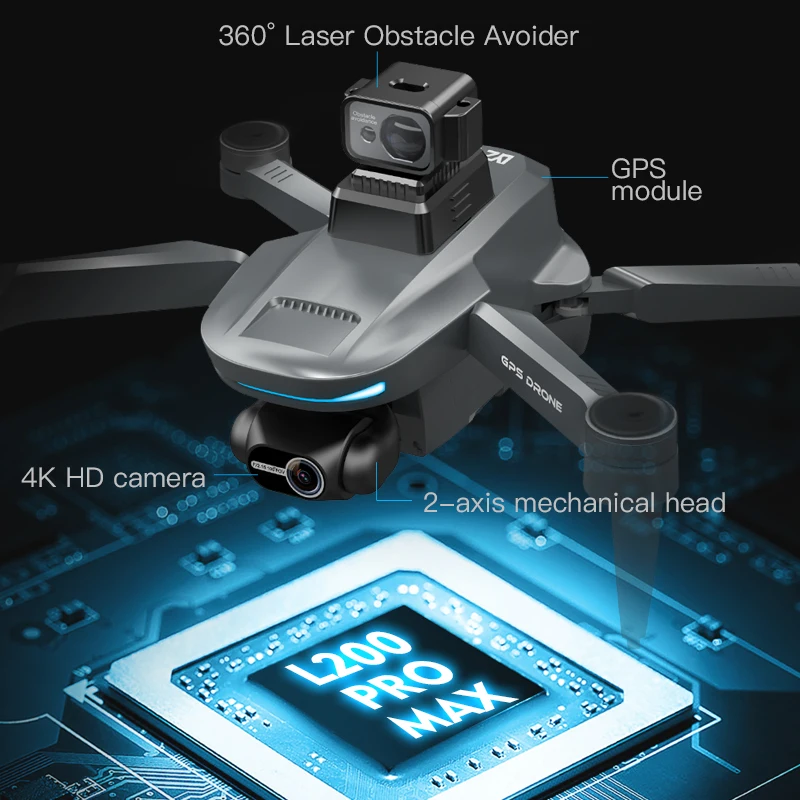

8. 4K adjustable camera (EIS two-axis mechanical stabilizing gimbal + laser obstacle avoidance)

9. 7.6V plug-in smart lithium battery
