Description
- Hign-concerned Chemical: None
- Is Electric: No battery
- Tool Supplies: Assembled class
- Upgrade Parts/Accessories: 7inch Drone Set
- RC Parts & Accs: Motors
- Material: Composite Material
- Brand Name: flyhike
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys

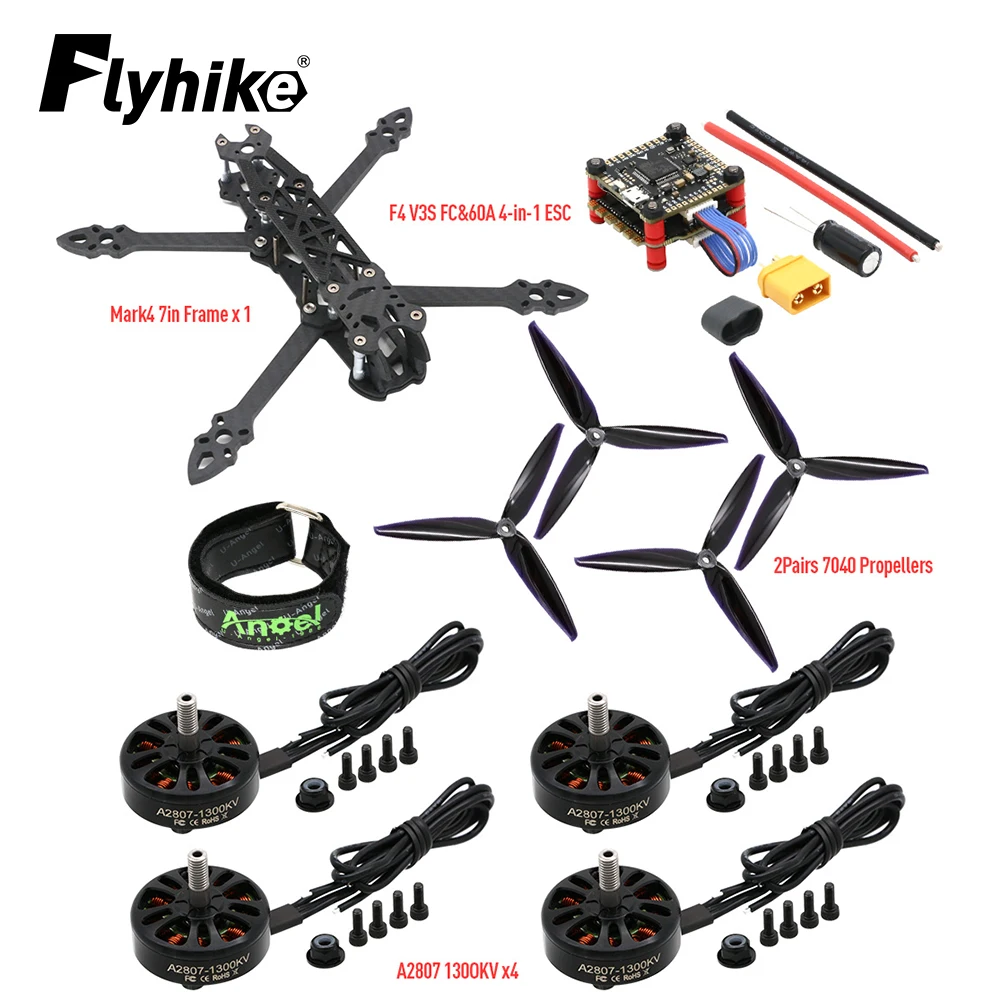

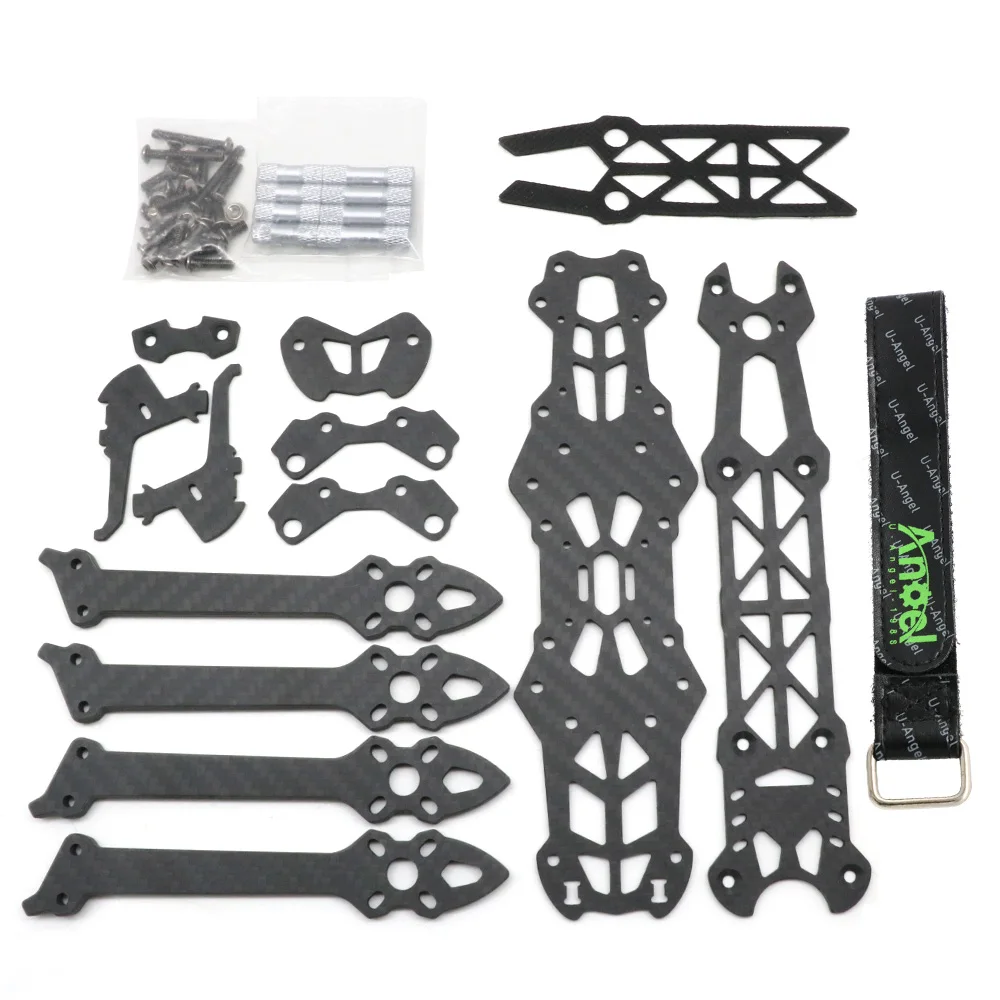

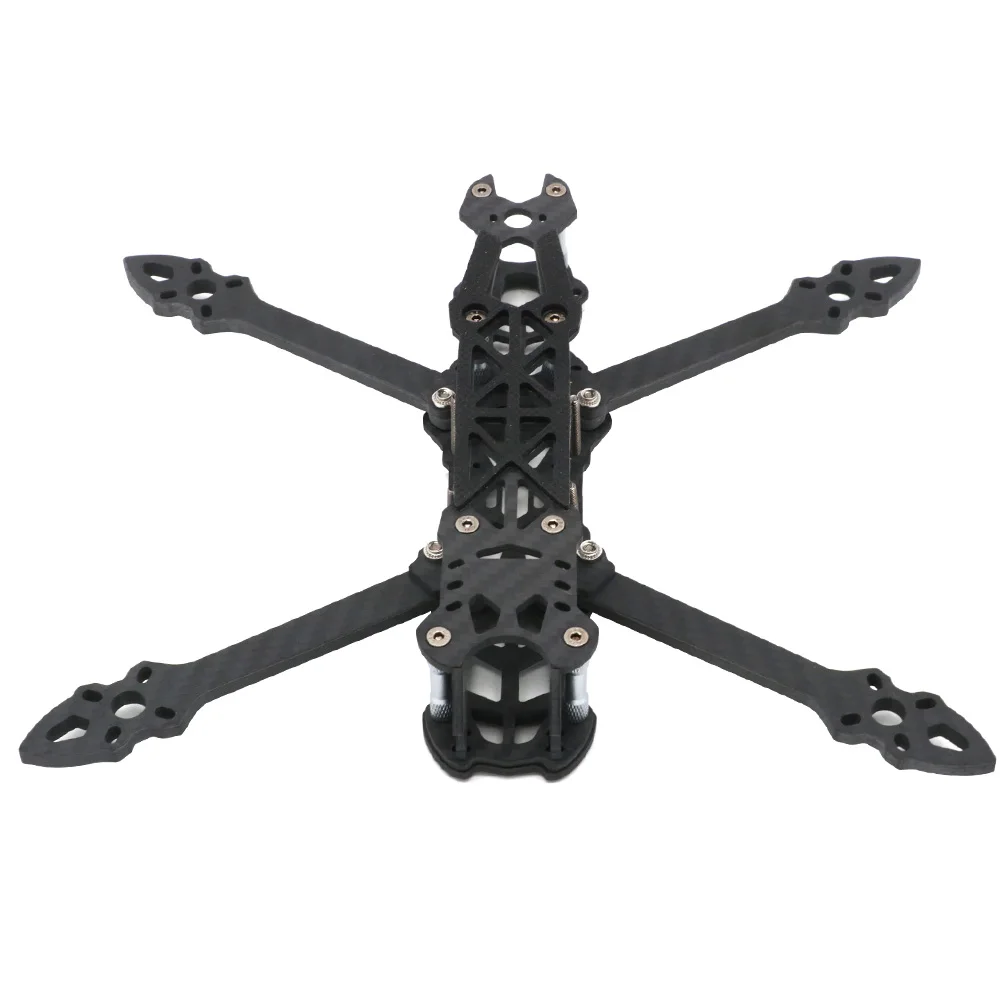

Name: Mark4-7inch
Propeller: 7 inch
Weight: 121g
Motor to moto: 295MM
Size: 193*223MM
Arms plate: 5MM
Top plate: 2.5MM
Bottom plate: 2.5MM
Side plate: 2.5MM
Camera mount size:19.3mm

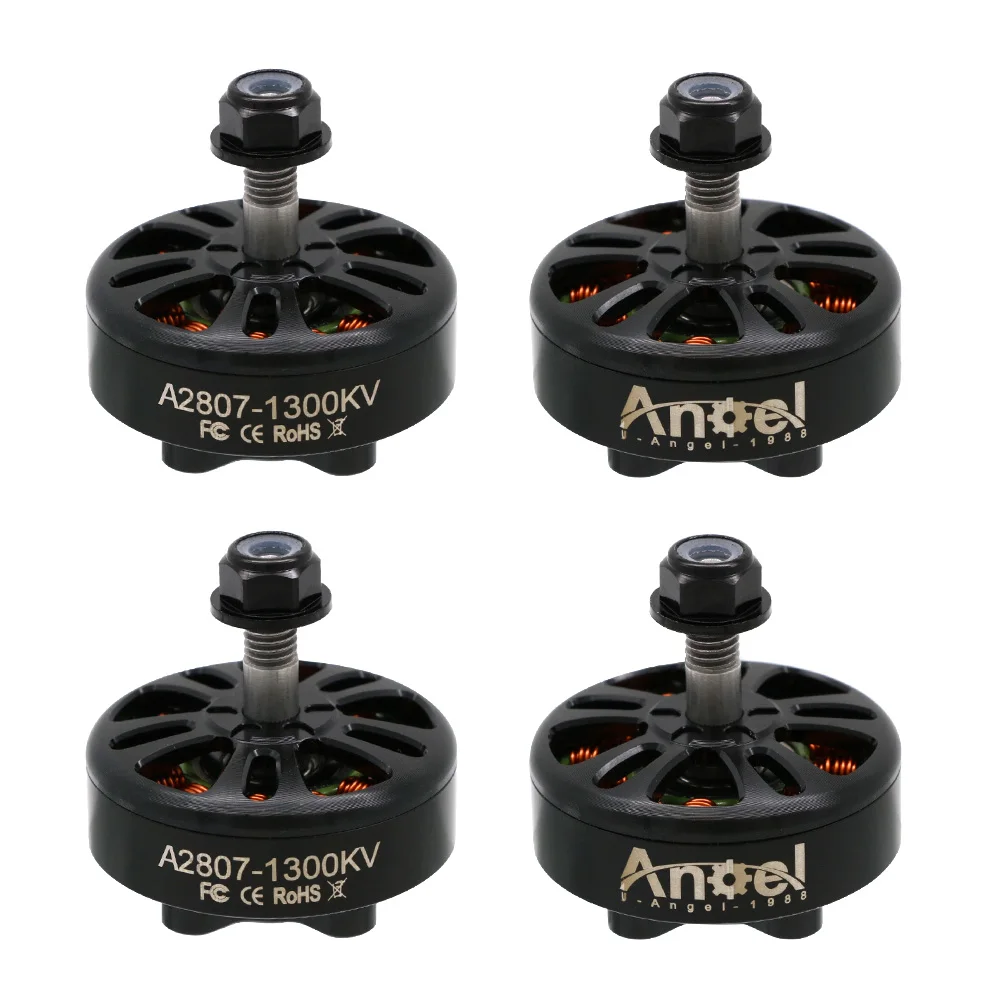

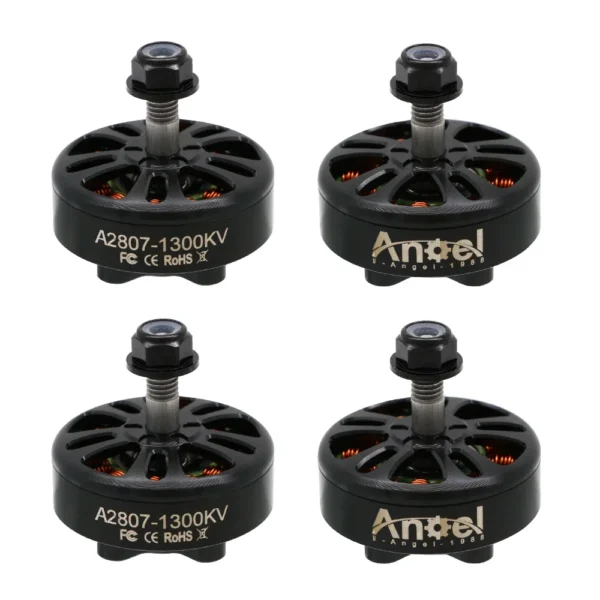

A2807KV 1300KV Motor
Specification:
Max pull: 1996g
Volts: 24V (6S)
Suggested ESC: 40A~ 60A
Max imum Power: 895. 7W
Suggested Prop: GF7043 inch prop

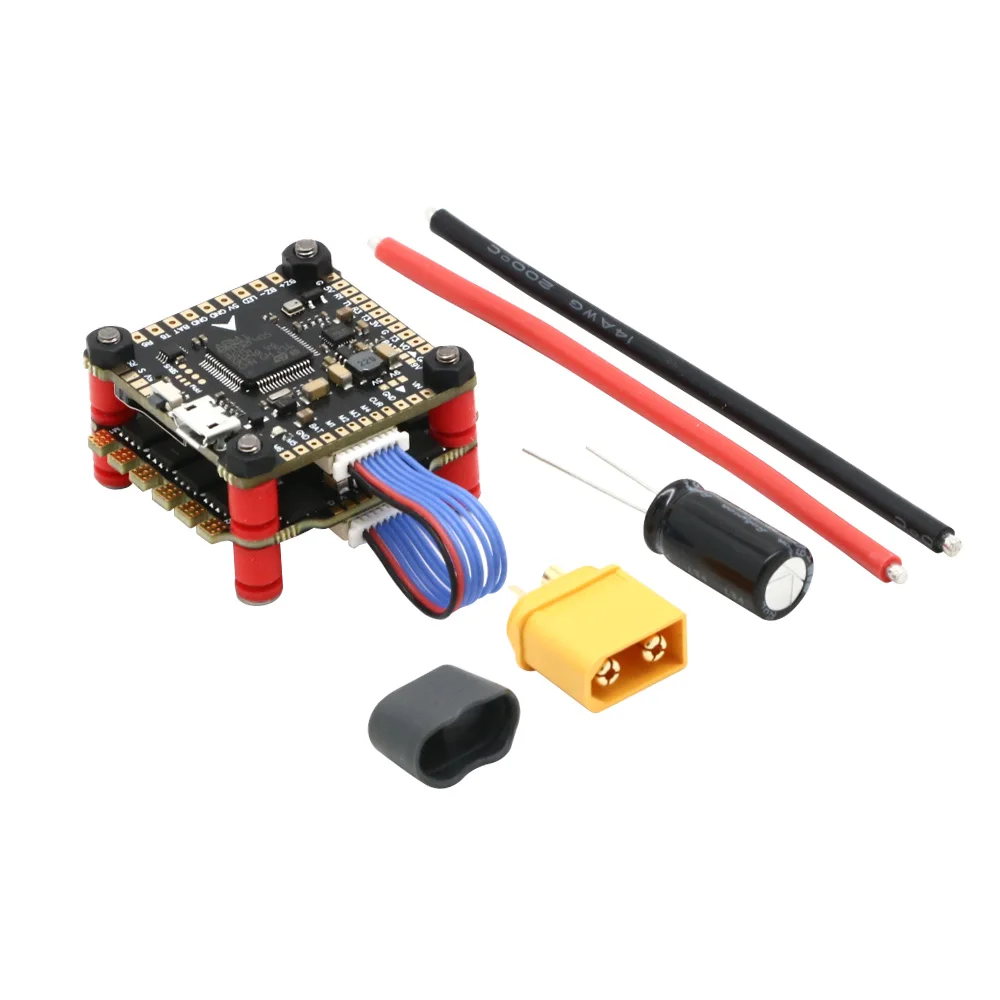

F4 V3S PLUS FC:
Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC:5v3a 9V3A
On-board video filters (only 5V to VTX and camera)
60A ESC:
60A 4-in-1 ESC
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize
the battery voltage, and protect the precision components of the flight control ESC

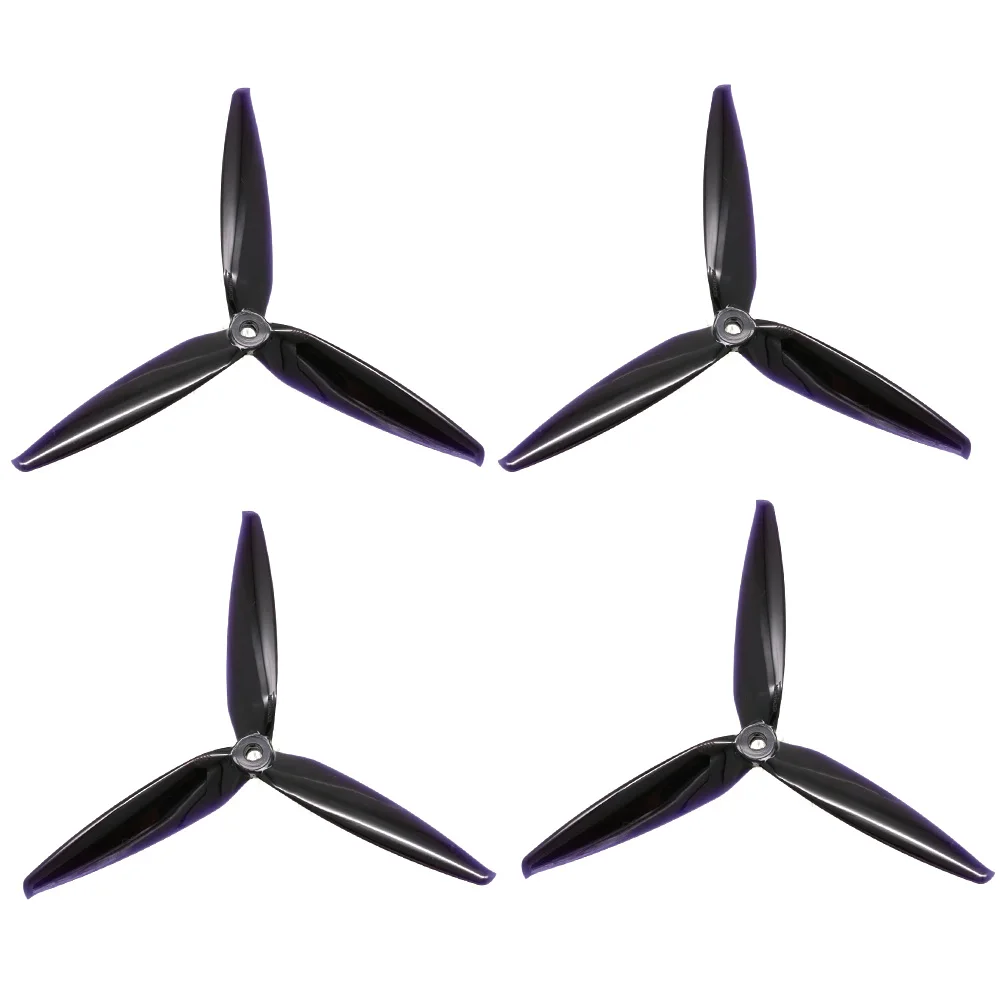

Tracker 7x4x3 Durable Tri-Blade Light Grey (2CW+2CCW)-Poly Carbonate:
Propeller Diameter: 7 inch
Pitch: 4
Blades: 3
Material: Poly Carbonate
Weight: 9.1g
Hub Diameter: 13.5mm
Hub Thickness: 7.5mm
Shaft: 5mm
Adaptor Rings : NO
